Carbon Brush Data Sheet
| Grade | D172/634/D214/J201/J204/J164 |

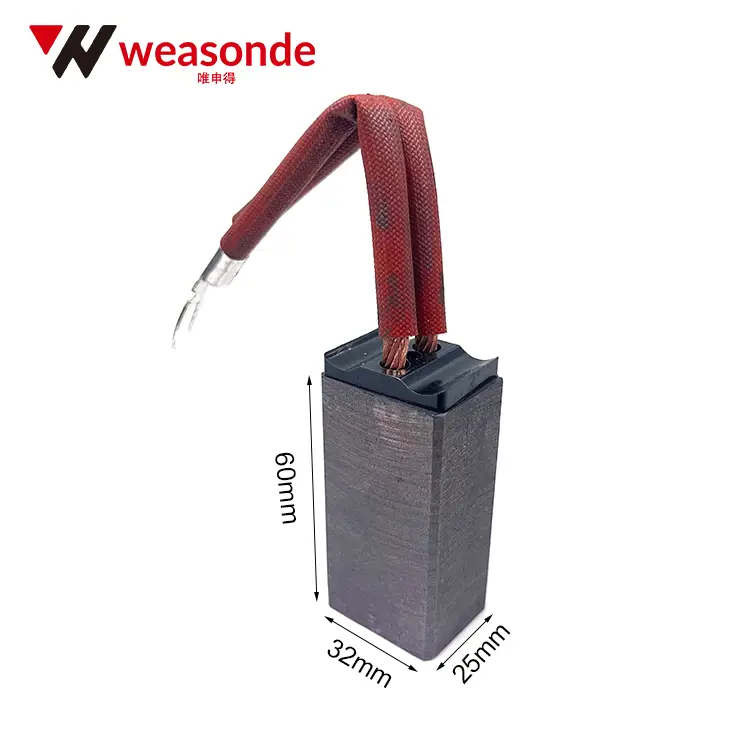

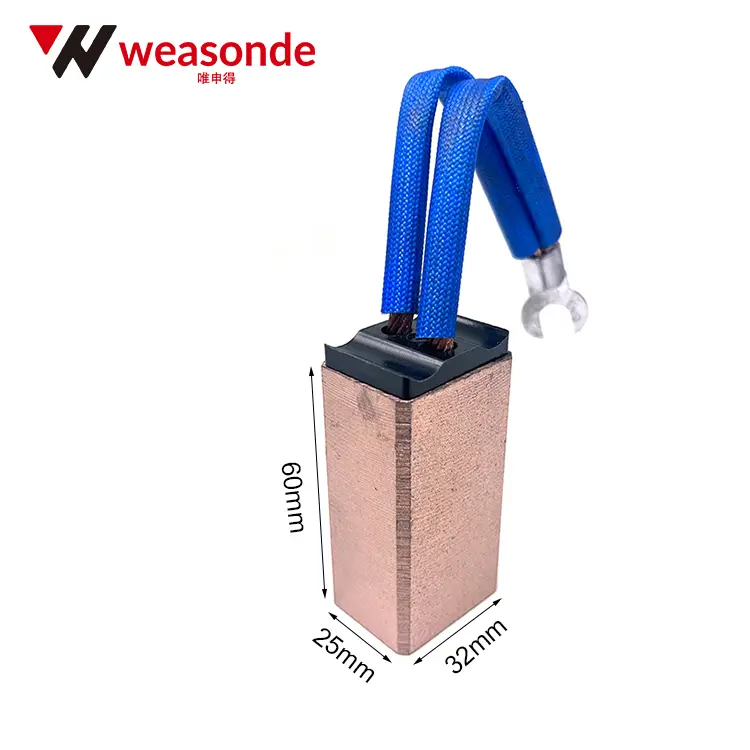

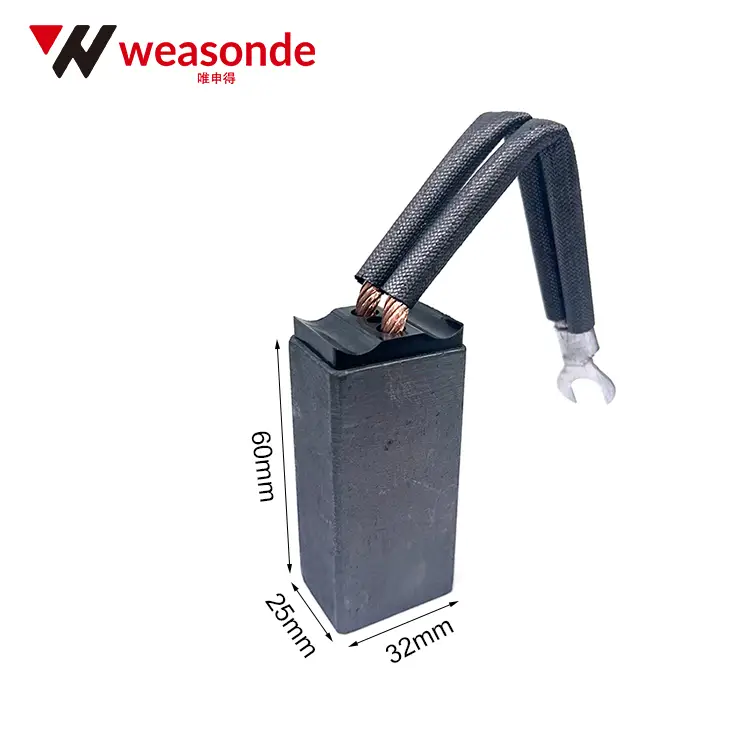

| Size | 25×32×60mm (Thickness×Width×Length) |
| Material | carbon graphite/soft graphite/high carbon/50%/65%/85% copper |
| Structure | T22 |
| Brand | Weasonde |
| Application | Hydropower Stations and Thermal Power Plants |
| Certification | ISO9001:2008 |
| Company | Manufacturer |
| Advantage | OEM Service Provide Samples Quickly |
| Warranty | 12 Months |
| Delivery Time | 5-15 Working Days |

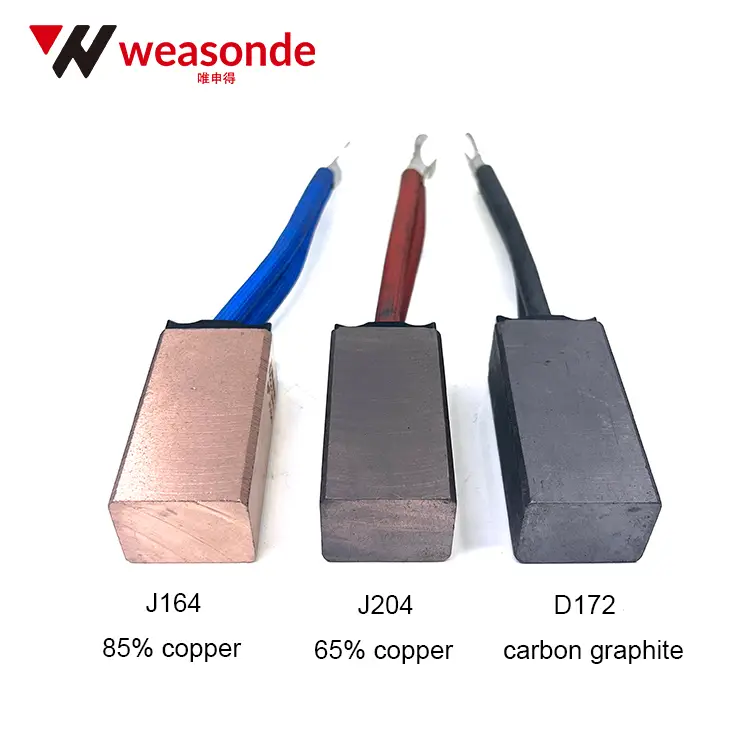

Material Grades and Applications
- Grade D172 – Carbon Graphite Brush
- Classic carbon graphite structure
- Good performance under high-load and stable operating conditions
- Ideal for medium-duty generators and motors
- Grade 634 – Soft Graphite Brush
- Softer texture for gentle contact
- Reduces wear on slip rings and commutators
- Suitable for applications requiring smooth running and reduced sparking
- Grade D214 – High-Carbon Graphite Brush
- Slightly harder and more wear-resistant than soft graphite
- Provides longer service life under demanding conditions
- Balanced choice for both durability and electrical performance
- Grade J201 – 50% Copper Graphite Brush
- Enhanced conductivity with 50% copper content
- Good compromise between electrical efficiency and mechanical strength
- Well-suited for heavy-duty industrial motors
- Grade J204 – 65% Copper Graphite Brush
- Higher copper ratio for improved current carrying capacity
- Better wear resistance and lower electrical losses
- Commonly used in power generation equipment
- Grade J164 – 85% Copper Graphite Brush
- Very high copper content for maximum conductivity
- Excellent wear resistance under extreme loads
- Designed for large-scale generators and high-output applications
Key Benefits
- Designed for hydropower and thermal power stations
- Six material options to match different operating environments
- High durability and stable performance under heavy electrical load
- Reliable choice for reducing downtime and maintenance costs
