Slip Rings with Carbon Brush Holders for Packaging Machines

20×50×34-2 Slip Ring with Carbon Brush Holders

20×50×59-4 Slip Ring with Carbon Brush Holders

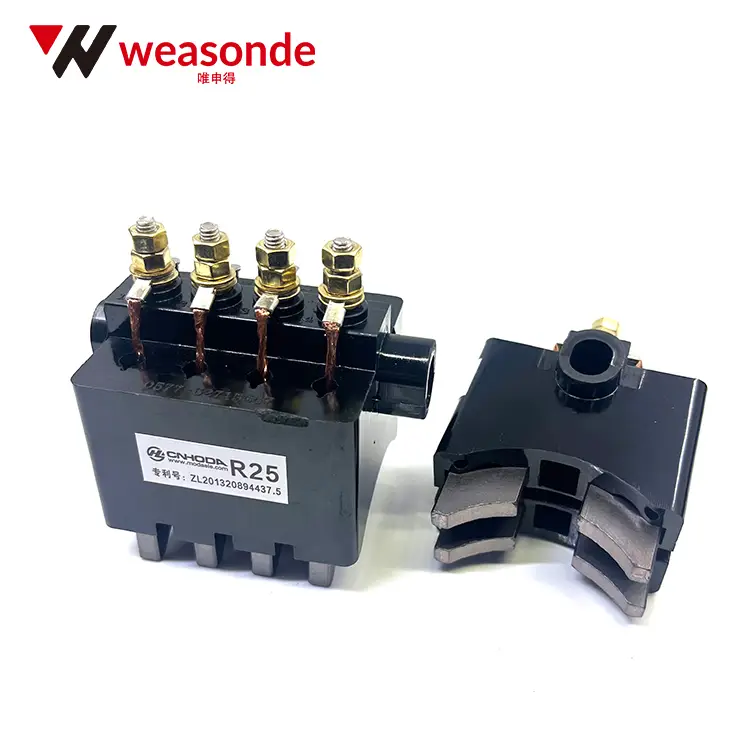

2 and 4 Circuits of Carbon Brush Holder Assemblies

Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

Category： Slip Ring

Our slip ring assemblies are designed specifically for packaging machines, ensuring stable electrical performance and long service life. Available in 2-ring (Ø20×Ø50×34 mm) with 2 carbon brush holders and 4-ring (Ø20×Ø50×59 mm) with 4 carbon brush holders, these solutions provide low electrical noise, reliable signal transmission, and minimal maintenance for demanding industrial environments.

Packaging Machine Slip Rings Data Sheet

Model number	2-Ring & 4-Ring Packaging Machine Slip Ring
Brand	Weasonde
Slip Ring Sizes	20×50×34-2 and 20×50×59-4
Circuit	2 and 4 Circuits
Inner Diameter	20mm
Outer Diameter	50mm
Carbon Brush Sizes	6×12×20mm (Thickness×Width×Length)
Voltage	12-380V
Current	15A per Circuit
Application	Packaging Machine
Certification	ISO9001:2008
Company	Manufacturer
Advantage	OEM Customization Service
Delivery Time	5-15 Working Days

Product Details

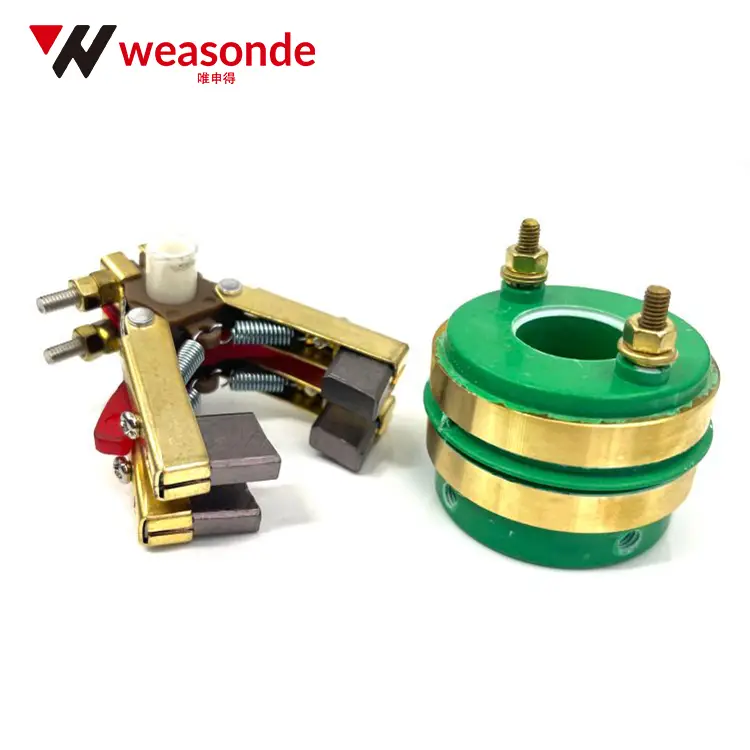

1. 2-Ring Slip Ring Assembly

Dimensions: Inner Ø20 mm × Outer Ø50 mm × Height 34 mm
Equipped with 2 × 6×12 mm carbon brush holders
Suitable for packaging machines requiring power and simple signal transmission

2. 4-Ring Slip Ring Assembly

Dimensions: Inner Ø20 mm × Outer Ø50 mm × Height 59 mm
Equipped with 4 × 6×12 mm carbon brush holders
Ideal for applications needing multi-channel transmission of power and control signals

Key Features

Stable Electrical Performance → uninterrupted operation, minimal downtime
Low Electrical Noise → ensures accurate data and control signal transmission
Long Service Life → wear-resistant brushes matched for hardness and contact surface
Reliable in Harsh Conditions → resistant to temperature changes, humidity, and vibration

Typical Packaging Machine Setup:

One 2-ring slip ring assembly + one 4-ring slip ring assembly work together to handle both power supply and signal transmission, ensuring smooth and efficient machine operation.

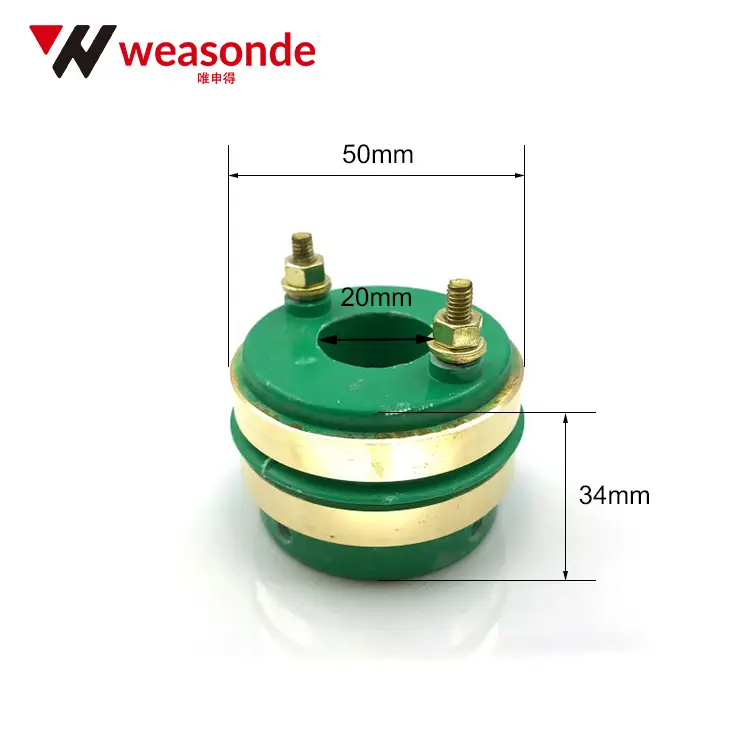

20×50×34 2 Slip Ring 1 Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

20×50×34 2 Collector Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

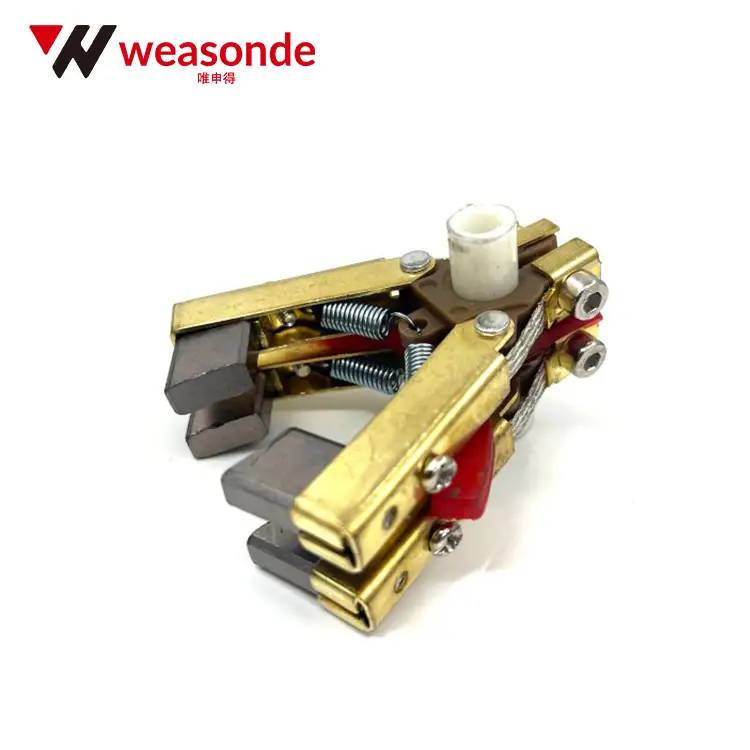

2 Rings of Carbon Brush Holders Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

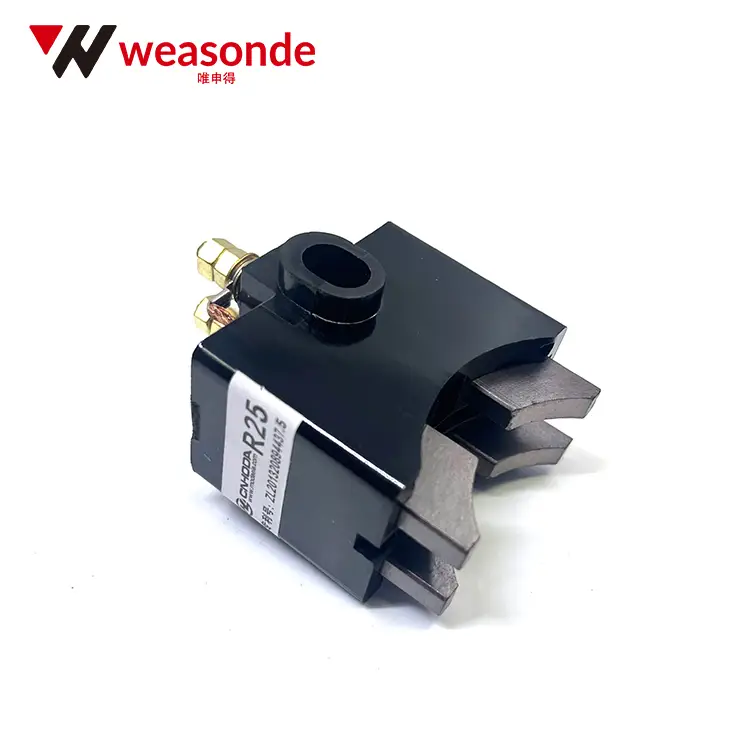

2 Circuits of Carbon Brush Holders Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

20×50×59 4 Slip Ring 1 Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

20×50×59 4 Collector Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

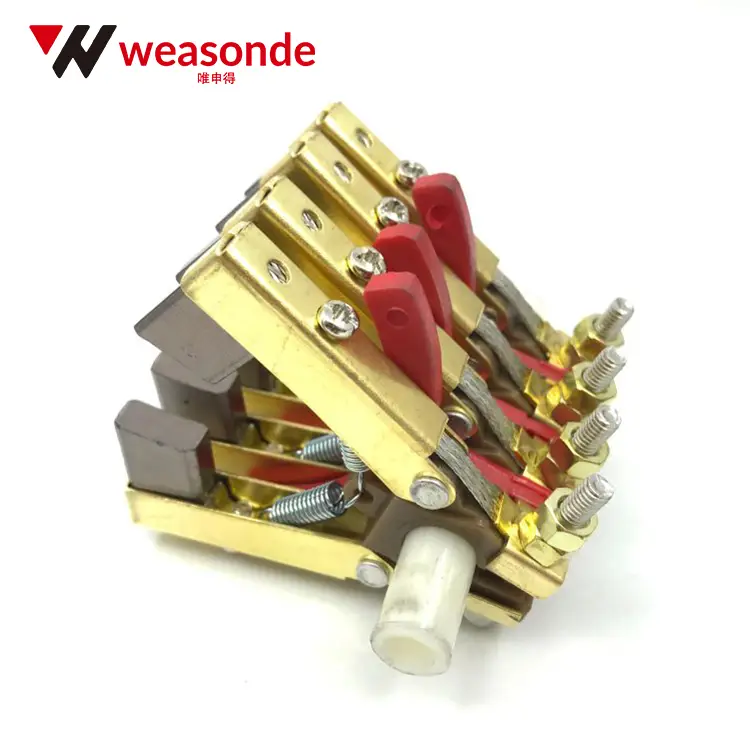

4 Rings of Carbon Brush Holders Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

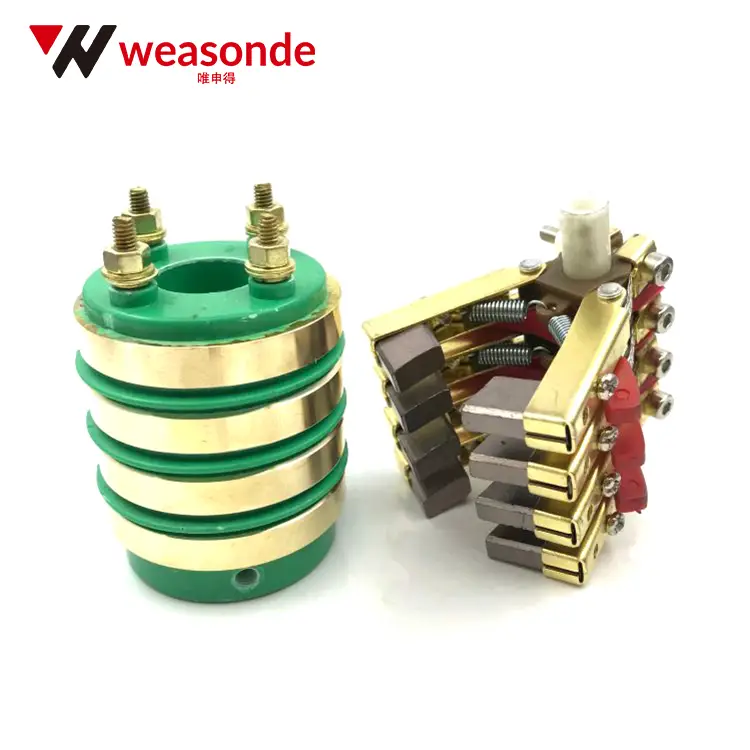

20×50×59 4 Slip Ring with Carbon Brush Holders Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

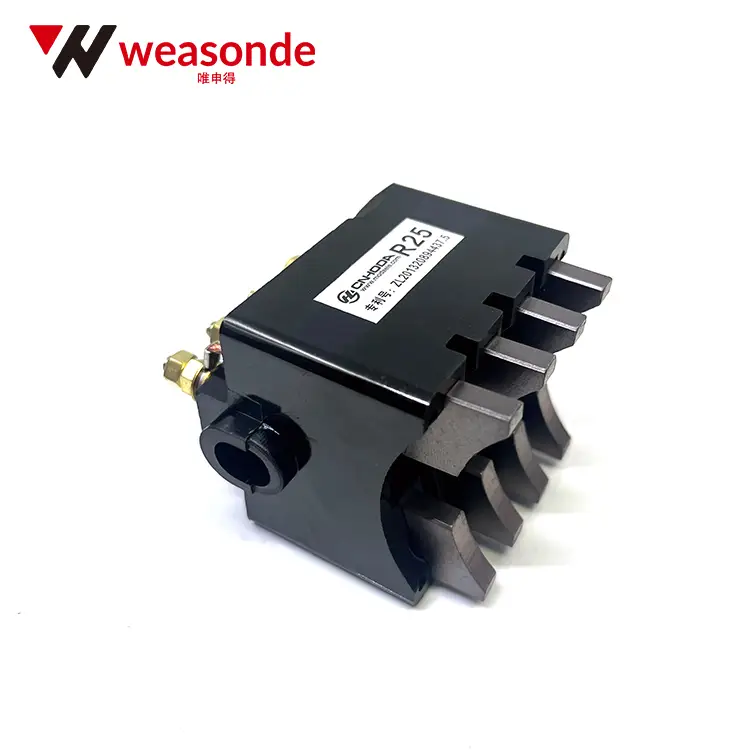

4 Circuits of Carbon Brush Holders Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models

4 Circuits of Brush Holders Slip Rings with Carbon Brush Holders for Packaging Machines | 2-Ring & 4-Ring Models
